Overview
Product description

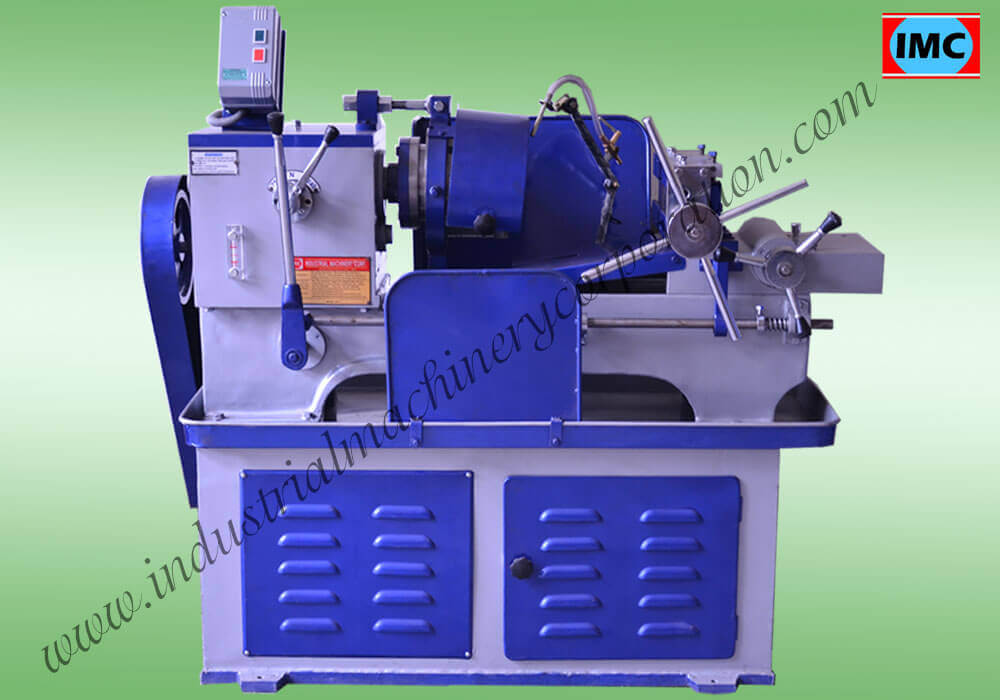

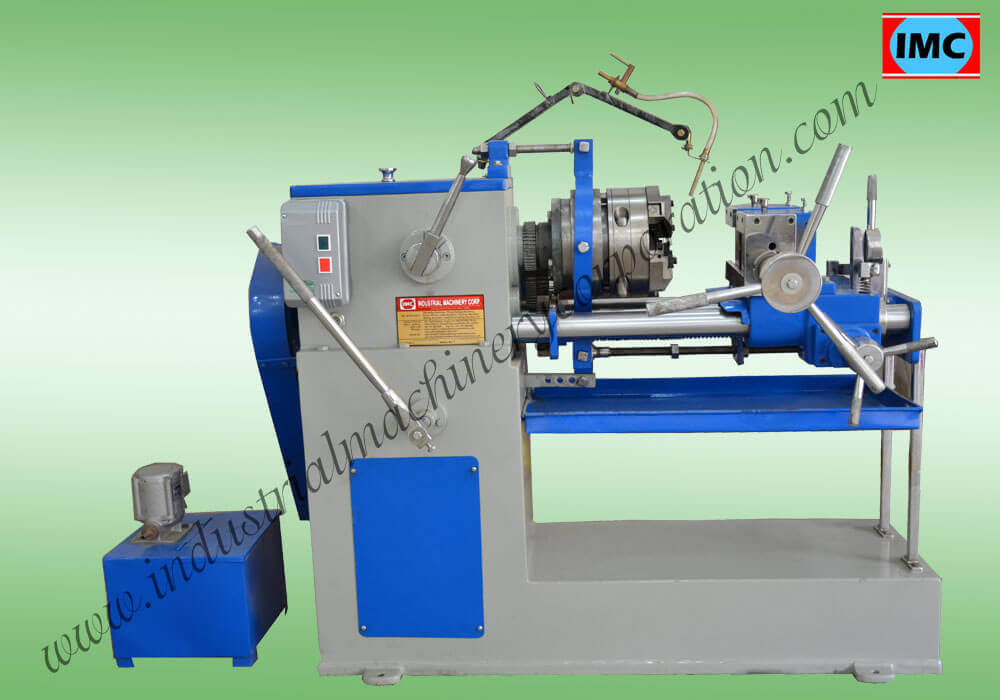

The PVC Pipe Threading Machine is use to cut the external threads with the help of Tangential chaser. Chaser is use as a cutter in machine. It remain still, Die-head rotates and different type of threads can be cut parallel and taper such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF Threads.
PVC PIPE THREADING MACHINES are designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. IMC recommends Lanco Type PVC Pipe Threading Machine.
Published data
Technical specifications
The PVC Pipe Threading Machine is used to cut the external threads with the help of a Tangential chaser. The chaser is used as a cutter in the machine. It remains still, Die-head rotates and different types of threads can be cut parallel and taper such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, and BSF Threads. The Machine mainly consists of the following:-
Base
Head Stock
Saddle
Bed or Pillar Type Clamping Vice
Die Head.
PVC PIPE THREADING MACHINES are designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. All the requirements are combined in this model from the fundamentals of correct PVC Pipe thread. All the gears are made of case-hardened steel with an extra large face and tooth thickness and cut on the hobbing machine for noiseless operation even at high speed. Naturally, they are built with high standards of workmanship, material, and quality so closely associated with COMPANY TRADITION.
DESIGN AND WORKMANSHIP: The Industrial Machinery Corporation thread cutting machines are designed to produce quality threads within the tolerance for which they were intended.
HEAD STOCK: A heavy duty geared Head Box is of the best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, and fitted with three extra heavy duty bearings.

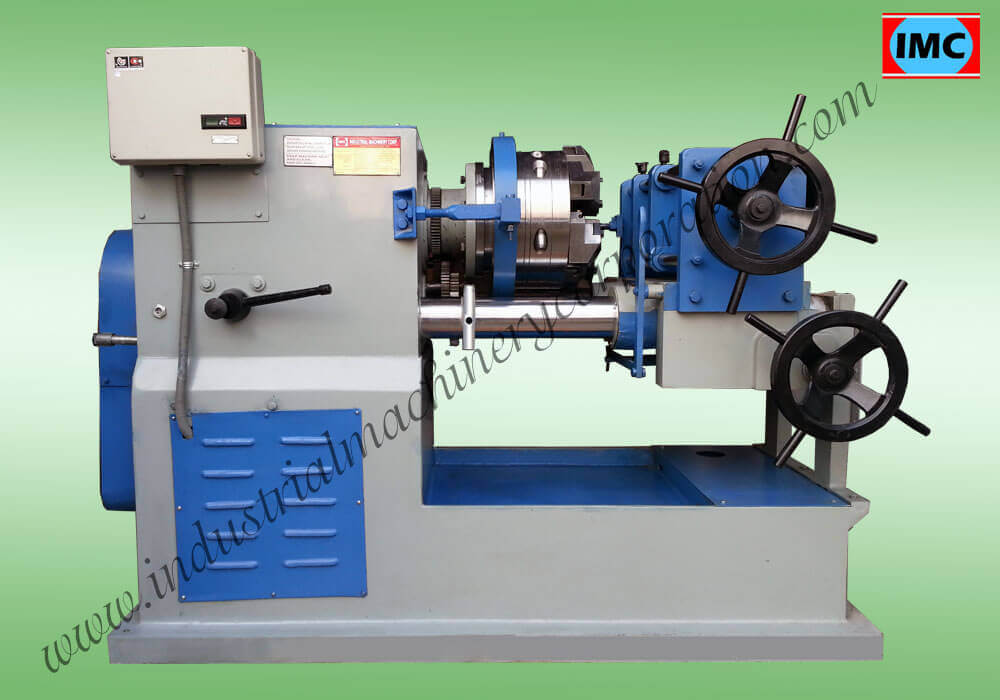

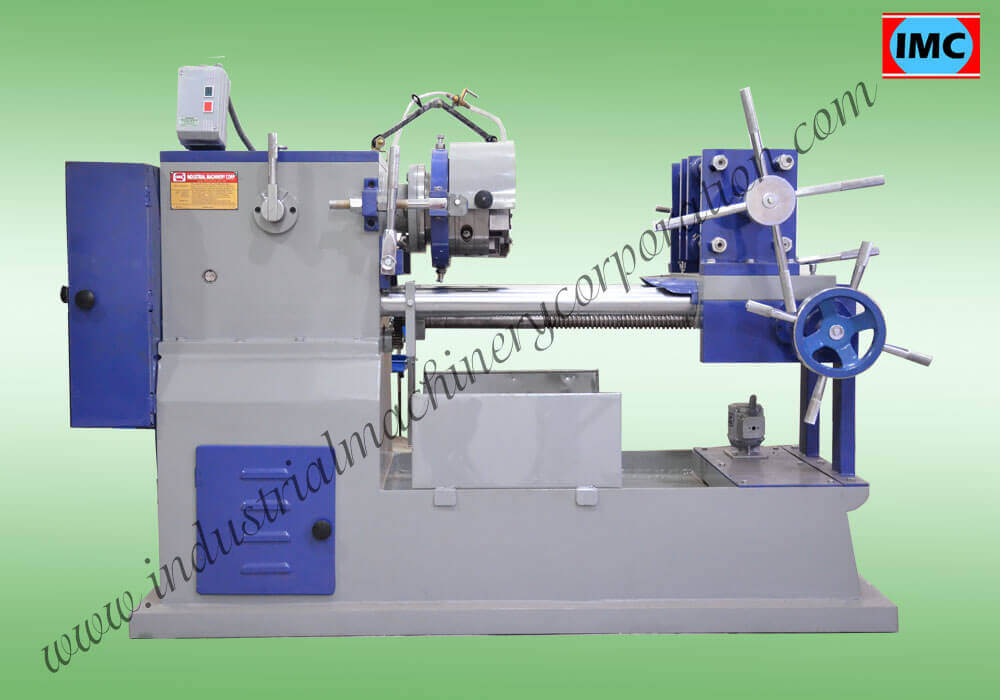

THE BED: The bed is pillar type of Threading Machine having two pillars made of best quality steel nicely finished and duly hard chrome plated in the most modern hard chrome plating unit.
THE SADDLE: The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.
The APRON: The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It's all gears are made of the best quality steel.
VICE JAWS: The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of the jaws are controlled by a screw on the saddle.
Range of IMC PVC Pipe Threading Machines and Die Heads.
1/4" to 1" do/-
3/8" to 1.1/2" do/-
1/2" to 2.1/2" do/-
